Official Logo | Brussels [lrt-tram]
Country: Belgium
Line: Line 3, Line 4, Line 7, Line 19, Line 25, Line 32, Line 39, Line 44, Line 51, Line 55, Line 62, Line 81, Line 82, Line 92, Line 93, Line 94, Line 97
Inhabitants: City 1100000, District 1800000
|
DESCRIPTION
Brussles tram opened in 1869 (initial horse tram) and from that date tram has been continuosly in service. Steam trams were experimented in 1876-1879, as well as accumulator trams in 1883-1890, before the complete electrification (1900). The network reached its maximum extension in 1955 (246 km).
The tram system was heavily reorganized starting from 1967, due to the contruction of some premetro sections (urban tunnels used by tram cars).
The current tram network consists in 17 lines; the central north-south route (Lines 3, 4) and the outer ring route (Lines 7, 25) use tunnel sections (premetro operations).
(last modified February 19, 2017 )
HISTORY| date | section name | line | | | 1869 | initial horse tram opening | -- | | 1876 | steam tram operations | -- | | 1883 | accumulator tram operations | -- | | 1900 | electrification completed | -- | | 1955 | maximum network extension: 246 km | -- | | 1967 | network reorganization due to partially underground pre-metro contruction | -- | | 22-04-2014 | Da Vinci-Eurocontrol | -- |
(last modified February 19, 2017 )
| TECHNICAL DATA
Single line length (Km)
Line 3:10.3
Line 4:10
Line 7:16
Line 19:9.2
Line 25:11.6
Line 32:16
Line 39:8.9
Line 44:9.3
Line 51:15
Line 55:5.9
Line 62:10.5
Line 81:13.8
Line 82:13.4
Line 92:12.7
Line 93:11.5
Line 94:9.5
Line 97:9.9
Single line stops
Line 3:26
Line 4:21
Line 7:36
Line 19:24
Line 25:28
Line 32:41
Line 39:20
Line 44:17
Line 51:41
Line 55:15
Line 62:23
Line 81:35
Line 82:41
Line 92:37
Line 93:33
Line 94:28
Line 97:28
Single line avg. distance (km)
Line 3:0.4
Line 4:0.5
Line 7:0.45
Line 19:0.4
Line 25:0.45
Line 32:0.4
Line 39:0.45
Line 44:0.6
Line 51:0.4
Line 55:0.4
Line 62:0.5
Line 81:0.4
Line 82:0.35
Line 92:0.35
Line 93:0.35
Line 94:0.35
Line 97:0.35
Total track length (km)
136
Total network stops
291
Avg. stop net distance (km)
0.45
Type
steel wheels
Current/Voltage
600 V DC overhead
Guide/gauge
standard gauge rails (1435 mm)
Vehicles builder
LA BRUGEOISE ET NIVELLES,BOMBARDIER
Model
PCC 7700/7800,PCC 7900,T2000,T3000,Flexity Outlook (T400)
Operator
STIB/MIVB
|
(last modified February 19, 2017 ) |

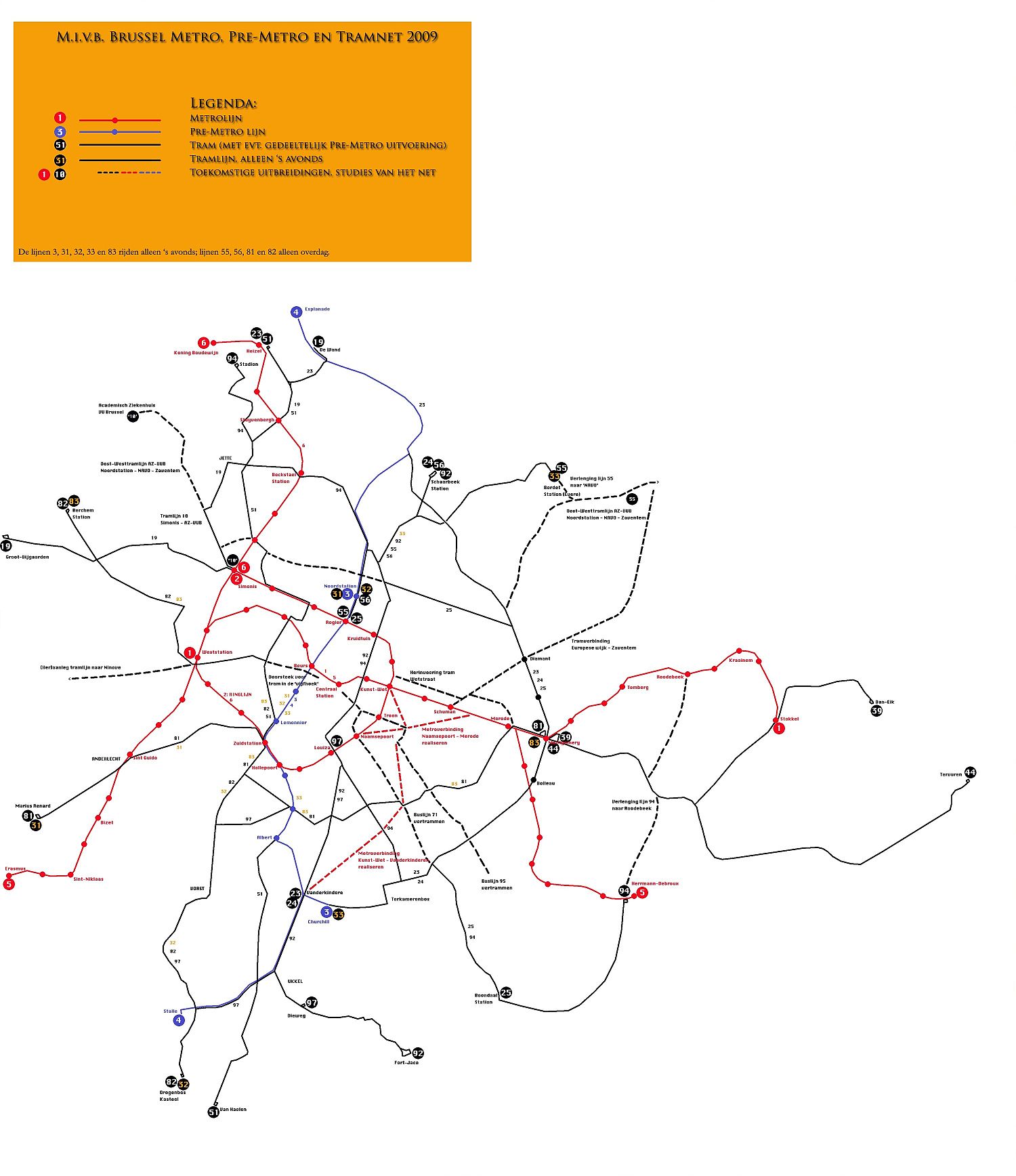

This image is shown smaller (800 x 930 pixels) than its maximum size (1500 x 1736 pixels)
Please click on the map to enlarge it to its maximum size lrt-tram - brussels; By Charles Voogd at nl.wikipedia [CC BY-SA 3.0 (http://creativecommons.org/licenses/by-sa/3.0) or GFDL (http://www.gnu.org/copyleft/fdl.html)], via Wikimedia Commons
|
|
