   | |   Official Logo
 | Nancy  [lrt-tram]Country: France
 Line: Line A [tram on tyres]
 Inhabitants: City 105000, District 435000

 |

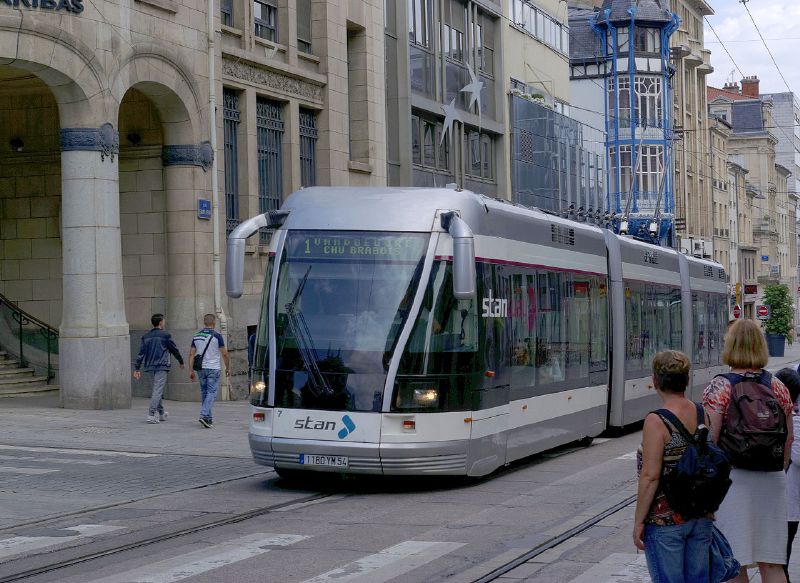

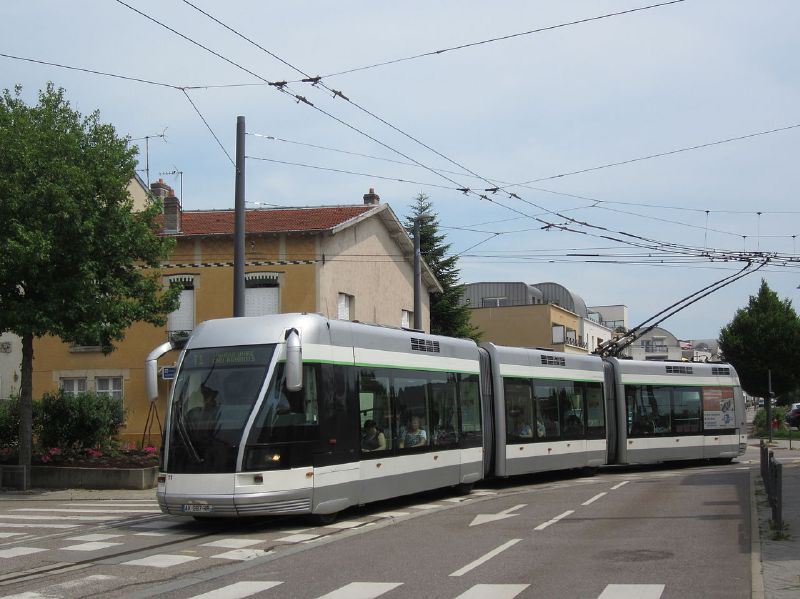

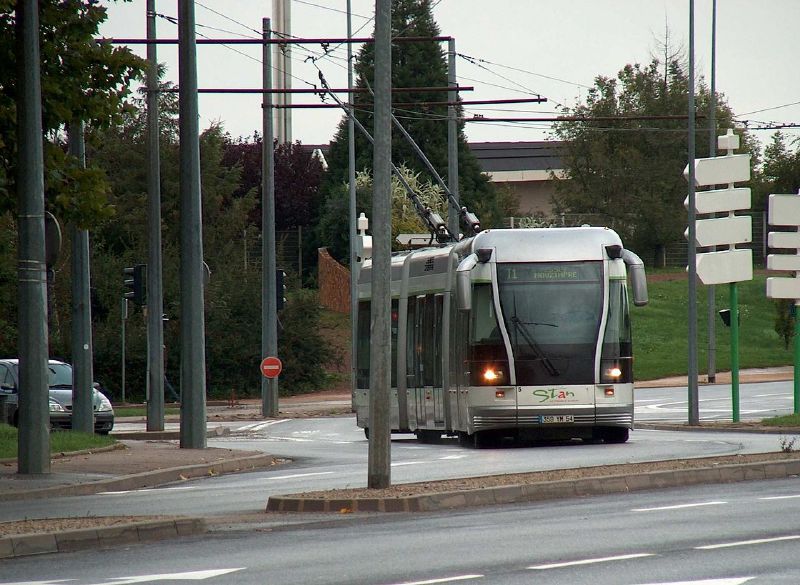

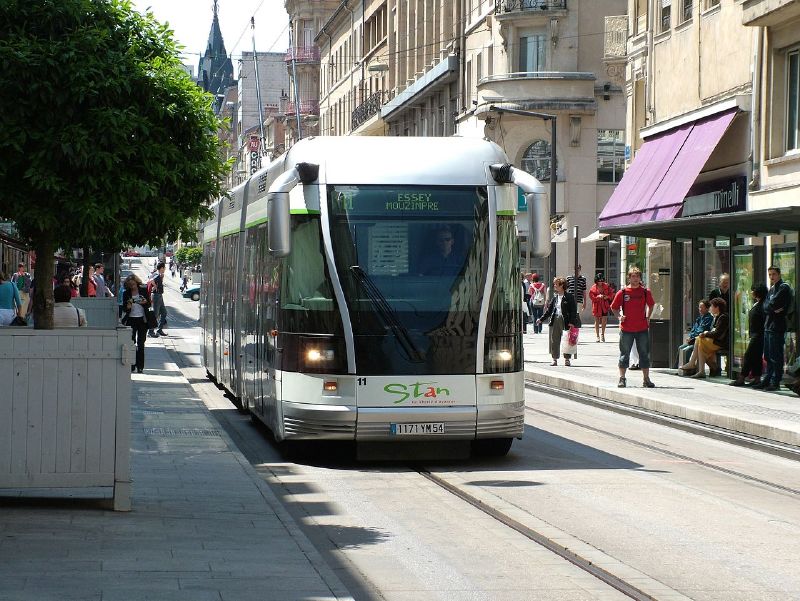

 DESCRIPTION(last modified February 19, 2017 )An innovative tram on tyres line opened in Nancy at the end of 2000; this line is electrically supplied in the same way of the existing trolleybus lines in Nancy. The so-called TVR (Transport sur voie reservee) is similar to the homologous system opened in Caen in 2002.
 TVR track is aligned with the main transit north-south axis; in its median position it interchanges with the railway station. Due to the adoption of rubber-tyres vehicles it has been possible to reach the technologic district of Brabois (overtaking a vertical gradient of 12-13%).
 The adoption of a such innovative transport system involved many initial technical problems, as well as some accidents (2001) and temporary interruptions of the service. After a severe verification phase (mostly concerning the overhead power supply and the line segments designed for the tram/trolley-bus transition) regular operations resumed in 2002, reaching remarkable riderships (currently about 40.000 pax/day).
 NOTE: Nancy municipality decided to replace TVR system with a more conventional trolleybus or tram system (expected completion: 2022).

 | HISTORY(last modified February 19, 2017 )| date | section name | line |  |  |  | 1874 | initial horse tram opening | -- |  | 1903 | electrification completed | -- |  | 1958 | tram network closure | -- |  | 08-12-2000 | Vandoeuvre CHU Brabois-Essey Mouzimpre | Line A |

 | (last modified February 19, 2017 )| TECHNICAL DATASingle line length (Km)
 --
 Single line stops
 --
 Single line avg. distance (km)
 --
 Total track length (km)
 11.3
 Total network stops
 27
 Avg. stop net distance (km)
 0.45
 Type
 rubber tyres
 Current/Voltage
 750 V DC overhead
 Type of guide/gauge
 central monorail
 Vehicles builder
 BOMBARDIER
 Model
 Transport sur voie reservee (TVR)
 Operator
 STAN

 |
 |

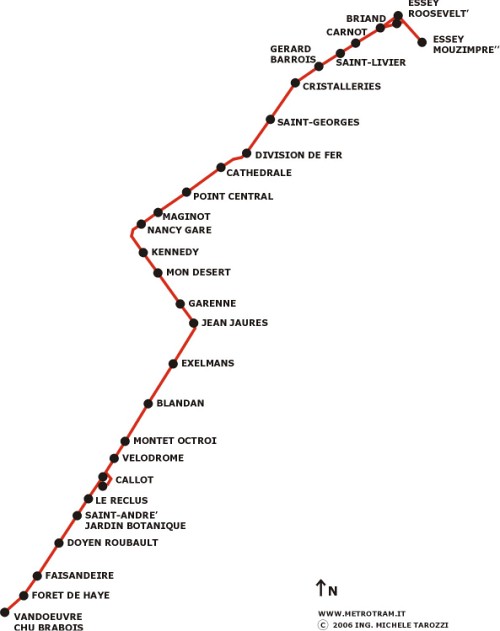

 this map is shown here at its maximum resolution (500 x 631)
 lrt-tram - nancy; By Metrotram.it
 |  |
