Country: United Kingdom
Inhabitants: City 560000, District 1570000
DESCRIPTION(last modified February 19, 2017 )
Sheffield tram opened in 1873 and it was electrified in 1902. The original tram network was closed in 1960.
Due to an increasing road congestion, in years '80s the local authorities decided to reintroduce a modern LRT/tram service (Sheffield Supertram). Supetram opened in 1994 (on March: Fitzalan Square-Meadowhall; on September: Fitzalan Square-Spring Lane; on December: Spring Lane-Gleadless Townend) and it was extended in 1995 (Fitzalan Square-Cathedral; Cathedral-Shalesmoor; Gleadless Townend-Halfway; Gleadless Townend-Herdings Park; Shalesmoor-Middlewood/Malin Bridge).
Supertram network consists in 3 radial lines (Meadowhall line, Halfway line, Middlewood line) which join each other in the city centre (at Cathedral, Castle Square and Fitzalan Square/Ponds Forge stops). Meadowhall line serves essentially an industrial district and runs mostly in reserved and segregated lanes (partly along an elder railway track). Halfway line goes through some peripheral suburbs, partly in reserved lanes, partly on the road traffic. Middlewood line serves the vital district of Hillsborough and the victorian suburbs.
The whole system is completed by 2 short branches to Malin Bridge and Herdings Park.
HISTORY(last modified February 19, 2017 )
|1873||initial horse tram opening||--|
|1960||tram network closed||--|
|22-08-1994||Fitzalan Square-Spring Lane||Supertram|
|05-12-1994||Spring Lane-Gleadless Townend||Supertram|
|03-04-1995||Gleadless Townend-Herdings Park||Supertram|
|2001||Park Grange Croft stop||Supertram|
(last modified February 19, 2017 )
Single line length (Km)
Single line stops
Single line avg. distance (km)
Total track length (km)
Total network stops
Avg. stop net distance (km)
750 V DC overhead
Type of guide/gauge
standard gauge rails (1435 mm)
Vossloh:British Rail Class 399

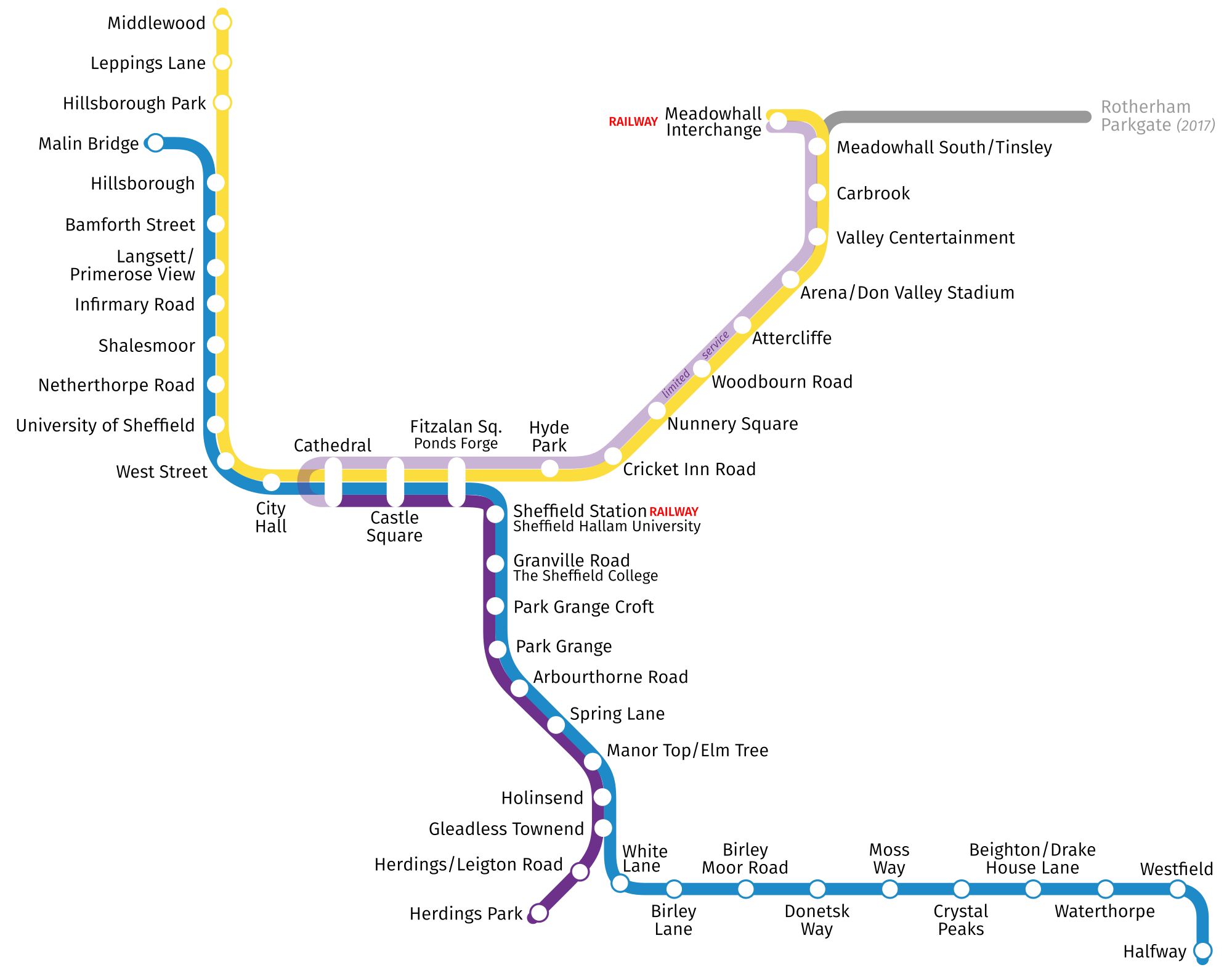

This image is shown smaller (800 x 635 pixels) than its maximum size (2000 x 1587 pixels)
Please click on the map to enlarge it to its maximum size
lrt-tram - sheffield; By David Arthur, via Wikimedia Commons
