| |  please, hold the mouse on the logo | Nantes  [lrt-tram]Country: France
 Line: Line 1, Line 2, Line 3
 Inhabitants: City 290000, District 900000

 |
 DESCRIPTION(last modified February 19, 2017 )Nantes bases its economy mainly on its important harbour and on many trades (expecially wood commerce). Its first tram line opened in 1879 and it was totally electrified in 1917. The original tram network was closed in 1958, to be replaced by ordinary bus services.

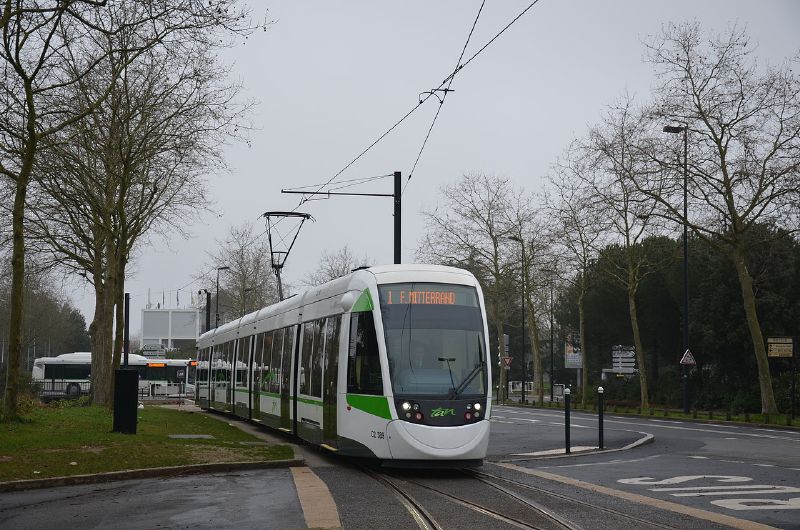

 The oil crisis in the years '70s and the rising traffic congestion convinced the administrators to restore an efficient guided public transport (tram). The first line (Line 1) of a modern tram network opened in 1985 (Bellevue-Haluchere); Line 1 was exended in 1989, 2000, 2007 and 2012. Line 1 currently runs from Francois Mitterand (west) to Beaujoire/Ranzay (north-east).
 The second modern tram line (Line 2) opened in 1992 (Trocardiere-Commerce) and it was extended in 1993-1994, 2005 and 2007. Line 2 currently runs from Orvaul Grand Val (north) to Gare de Pont Rousseau (south); Line 2 interchange with Line 1 at Commerce and it shares part of its track (Commerce-Pont Rousseau) with Line 3.
 The first section of the current Line 3 opened in 2000 (Plaisance-Commerce) and it was extended in 2004, 2007 (Line 2/Line 3 common section, see above) and 2009; it currently runs from Neustrie (south) to Marcel Paul (north-west). Line 3 (as well as Line 2), interchanges with Line 1 at Commerce.

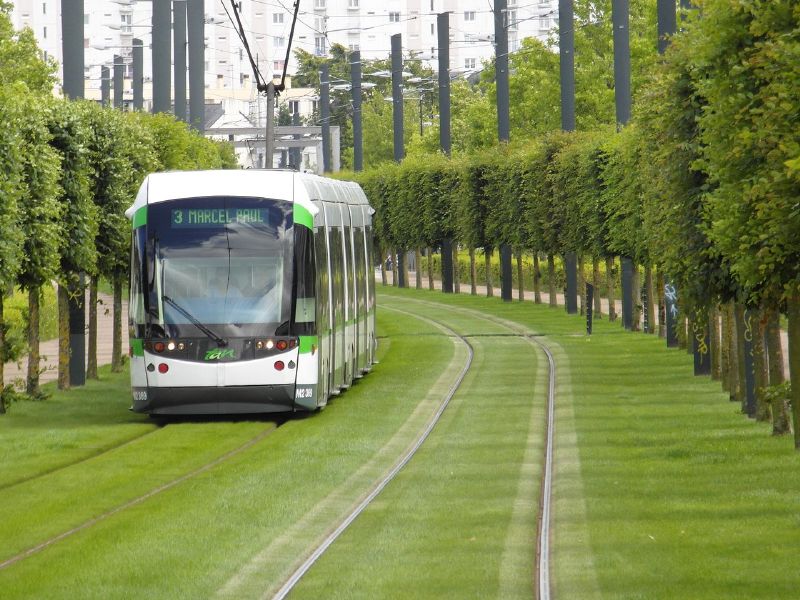

 This tram network was one of the first in Europe to introduce interesting features, such as the adoption of grass-tracks and low floor rolling stock.
 The whole transit system has been completed on November 2006 by a modern bus line in reserved lanes (Line 4/BusWay) which runs from Porte de Vertou to Place Foch. BusWay interchanges both with tram (Line 1, at Duchesse Anne Chateau) and with other standard bus routes; four relevant park & ride facilities are located along the track.

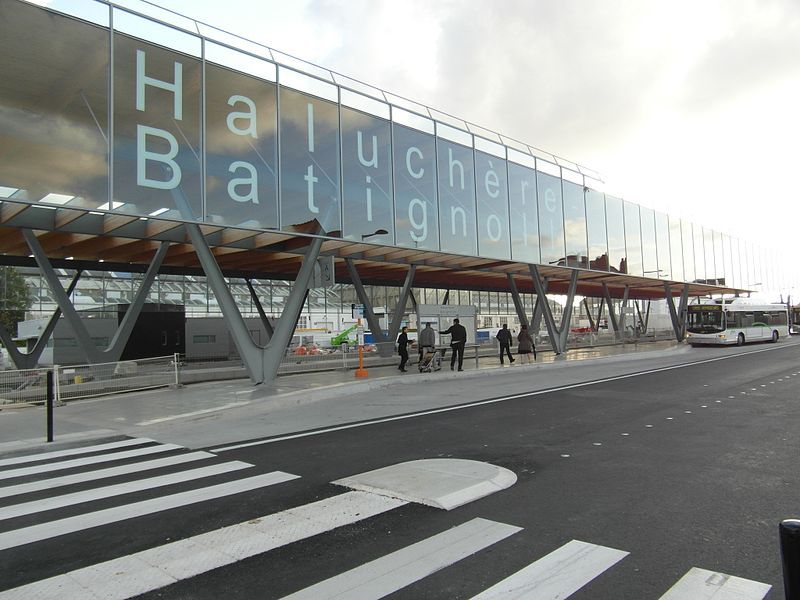

 | HISTORY(last modified February 19, 2017 )| date | section name | line |  |  |  | 1879 | initial horse tram opening | -- |  | 1917 | electrification completed | -- |  | 1958 | tram network closure | -- |  | 07-01-1985 | Bellevue-Haluchere | Line 1 |  | 22-04-1989 | Haluchere-Beaujoire | Line 1 |  | 17-04-2000 | Croix Bonneau-Mendes France Bellevue | Line 1 |  | 28-08-2000 | Mendes France-Francois Mitterand | Line 1 |  | 03-09-2007 | Croix Bonneau-Jamet | Line 1 |  | 01-10-2012 | Haluchere stop replaced by Haluchere Batignolles multimodal interchange stop;Haluchere Batignolles-Ranzay | Line 1 |  | 08-09-1992 | Trocardiere-Pirmil-Commerce | Line 2 |  | 18-10-1992 | Commerce-50 Otages | Line 2 |  | 06-09-1993 | 50 Otages-Ecole Centrale | Line 2 |  | 14-03-1994 | Ecole Centrale-Bourgeonniere | Line 2 |  | 29-08-1994 | Bourgeonniere-Orvault Grand Val | Line 2 |  | 29-08-2005 | Trocardiere-Neustrie | Line 2 |  | 03-09-2007 | Pirmil-Gare de Pont Rousseau;Pont Rousseau-Neustrie section annexed to Line 3 | Line 2 |  | 28-08-2000 | Plaisance-Commerce | Line 3 |  | 05-04-2004 | Plaisance-Sillon de Bretagne | Line 3 |  | 03-09-2007 | Hotel Dieu-Neustrie | Line 3 |  | 05-01-2009 | Sillon de Bretagne-Marcel Paul | Line 3 |

 | (last modified February 19, 2017 )| TECHNICAL DATASingle line length (Km)
 Line 1:18.4
 Line 2:11.7
 Line 3:14.1
 Single line stops
 Line 1:34
 Line 2:25
 Line 3:32
 Single line avg. distance (km)
 Line 1:0.55
 Line 2:0.5
 Line 3:0.45
 Total track length (km)
 41
 Total network stops
 83
 Avg. stop net distance (km)
 0.50
 Type
 steel wheels
 Current/Voltage
 750 V overhead
 Type of guide/gauge
 standard gauge rails (1435 mm)
 Vehicles builder
 ALSTOM,ADTRANZ,CAF
 Model

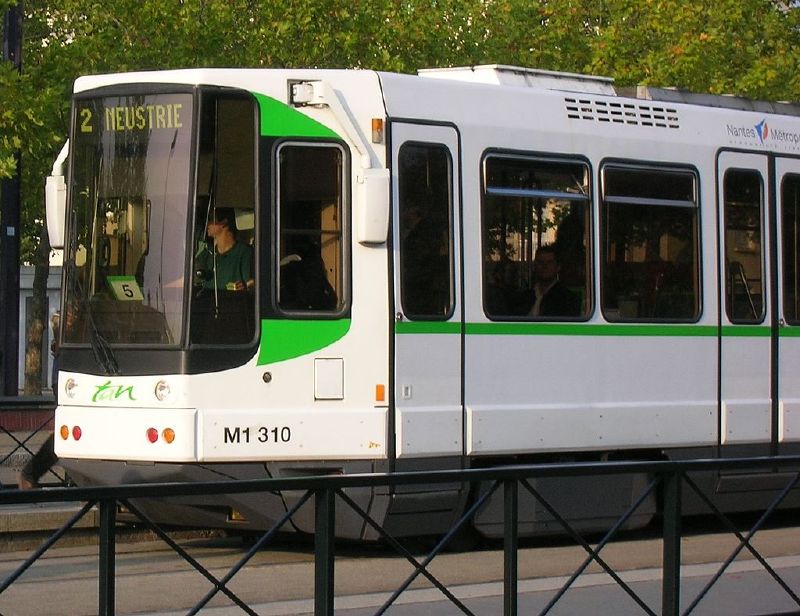

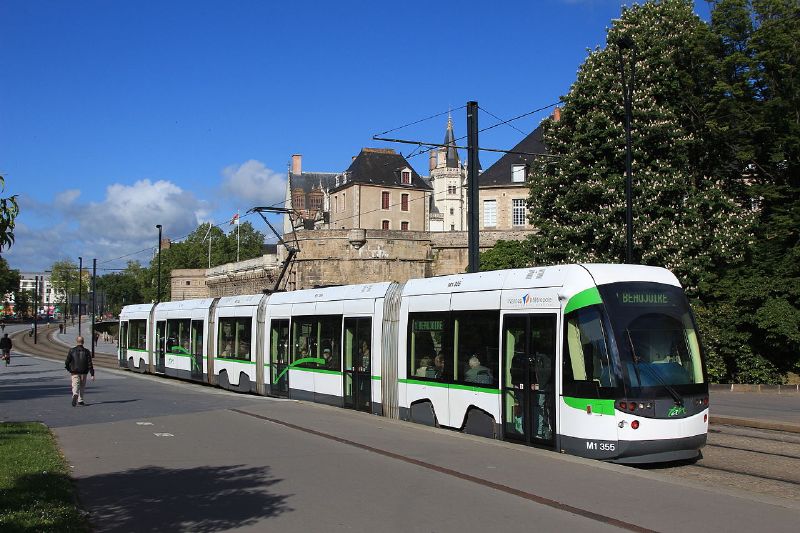

 Tramway franCais standard (TFS),Incentro,Urbos 3
 Operator
 SEMITAN

 |
 |

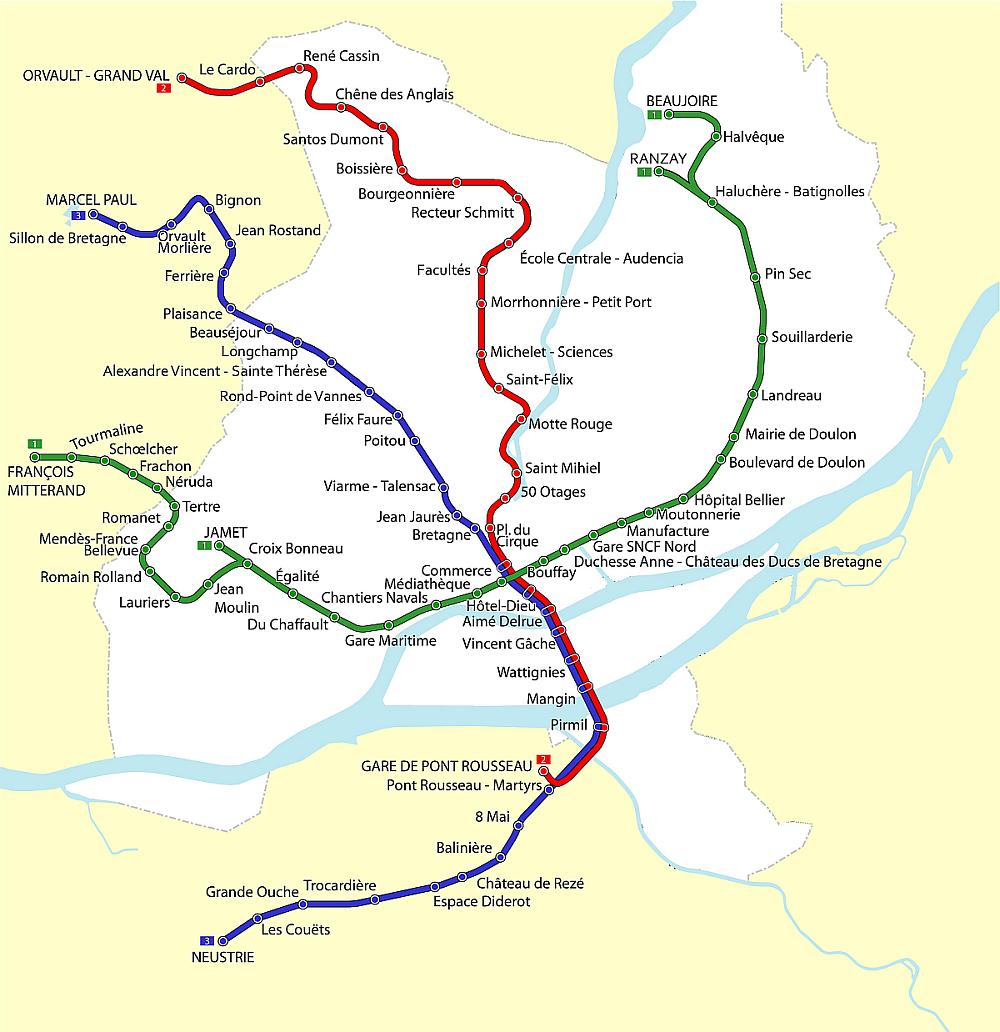

 This image is shown smaller (800 x 825 pixels) than its maximum size (1000 x 1032 pixels)Please click on the map to enlarge it to its maximum size
 lrt-tram - nantes; By TramwaydeNantes2010.png: Rigil derivative work: Burgerentscheid [Public domain], via Wikimedia Commons
 |
